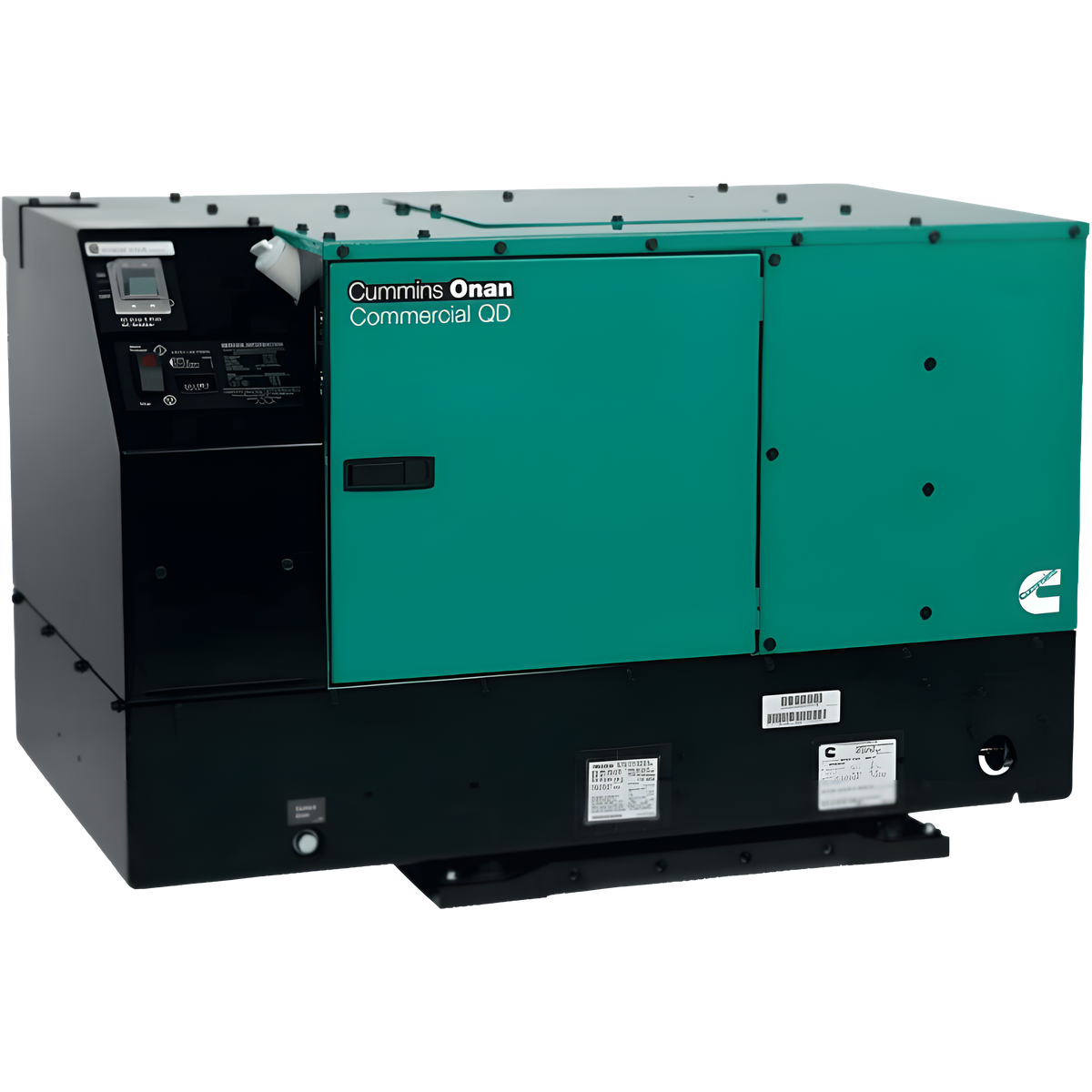

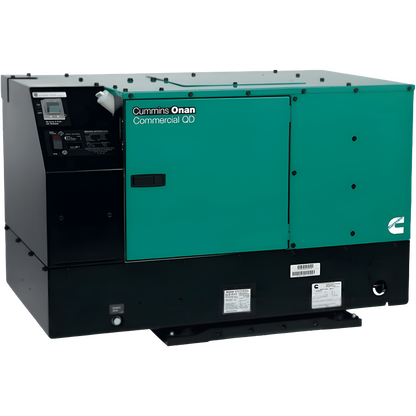

Cummins Onan QD 10000 10kW RV Generator 10HDKCA11506 RV Diesel Single Phase 120 Volt Liquid Cooled New
Cummins Onan QD Diesel powered 10000 watt RV generator. Computer controlled constant speed operation, Quiet Diesel performance for smaller RV's. Special sound-controlling housing encloses the cooling system and muffler. Double isolation mounting system reduces vibration.
Features
- 10.0 kW Diesel Powered RV Generator (Model 11506)
- Designed for Type A RVs w/ 3 AC units (45A 2-Pole Breaker)
- Runs 3 15,000 BTU AC units w/ 2500 additional watts available
- Cummins Onan 1499cc Liquid-Cooled Diesel Engine
- Automatic timed glow plugs for quick & easy starting
- Elec. fuel pump w/ full oil & fuel filter (.43 Gal/h @ 1/2 Load)
- Microprocessor Controlled
- Self-diagnostic capability to simplify troubleshooting
- High Quality, Pure Sine Wave Electrical Output
- Digital voltage regulator prevents damaging spikes
- Computer-Controlled Variable Speed Operation
- Matches engine speed to load demand, minimizes noise levels
- Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
- Lowers noise levels while providing cross-flow cooling
- Three-Point, Fully Focalized Mounting System
- Reduces vibration for quieter operation
- Stationary exhaust pipe connection point for easy installation
- Integrated Generator Set & Engine Control
- Provides user friendly controls and safety features
- 3 Year / 2000 Hour Warranty
Specifications
| Hour Meter |
Yes |
| Fuel Consumption |
.38-.78 gallons/hr |
| Circuit Breaker Size |
45 Amps |
| Min. Air Inlet - Front |
19" x 12" |
| Min. Air Outlet - Bottom |
15" x 16" |
| Grade Type |
Recreational |
| Engine Brand |
Cummins Onan |
| Starting System |
12-Volt Button Start |
| HP |
27 HP |
| CC |
1499 CC |
| Consumer Engine Warranty |
3 Years |
| Low Oil Alert/Shutdown |
Yes |
| Product Category |
Generator - RV |
| Weight |
767 Pounds |
| Consumer Warranty |
3 Years |
| Product Style |
RV Generator |
| Product Length |
41.4 Inches |
| Product Width |
24.5 Inches |
Manual
User's Manual
Specification Sheet
Brochure
Warranty
What Our Experts Think
-
Impressive 10kW Power: Ideal for large RVs and demanding appliances, providing reliable single-phase 120V power.
-
Diesel-Powered Efficiency: Diesel engine ensures long-lasting power with superior fuel economy and durability.
-
Liquid-Cooled for Longevity: Liquid cooling system reduces engine wear and maintains optimal performance.
-
Quiet Operation: Operates with minimal noise, perfect for quiet camping or RV park environments.
-
Durable & Robust: Built to endure the harshest conditions and deliver dependable power for years.
-
Seamless Integration: Designed for easy connection to your RV’s electrical system, ensuring effortless setup.
-
Cummins Reliability: Backed by Cummins' trusted reputation for innovative and high-performance power solutions.
Q&A
Q: What is the power output?
A: 10kW continuous power, single-phase, 120V.
Q: What fuel does it use?
A: Runs on diesel, ideal for long-term RV use.
Q: Is it suitable for large RVs?
A: Yes, perfect for powering high-demand appliances and air conditioning in large RVs.
Q: What cooling system does it have?
A: Liquid-cooled for efficient and quieter operation.
Q: How reliable is it for sensitive electronics?
A: Provides clean, stable power, making it safe for sensitive electronics.
Q: What safety features are included?
A: Features low oil shutdown, high temperature shutdown, and overload protection.
Q: How quiet is it?
A: Operates at a low noise level, designed for minimal disruption.
Q: Is it EPA and CARB compliant?
A: Yes, it meets EPA and CARB emission standards.
Q: Is it easy to install?
A: Yes, comes ready for installation with necessary components.
Q: What warranty is included?
A: Covered by Cummins’ warranty and nationwide support.
Maintenance Tips
-
Oil Changes: Change oil and filter every 150 hours or annually, whichever comes first.
-
Air Filter: Inspect and clean or replace every 500 hours or sooner depending on dust conditions.
-
Coolant System: Check coolant levels regularly; flush and replace coolant every 2 years.
-
Fuel System: Use clean, high-quality diesel; replace the fuel filter every 500 hours.
-
Battery: Ensure the battery is fully charged and connections are clean for reliable starting.
-
Exhaust: Regularly inspect exhaust system for leaks and proper function.
-
Exercise Generator: Run the generator under load for 2 hours every month to keep it in good condition.
