Product Highlight:

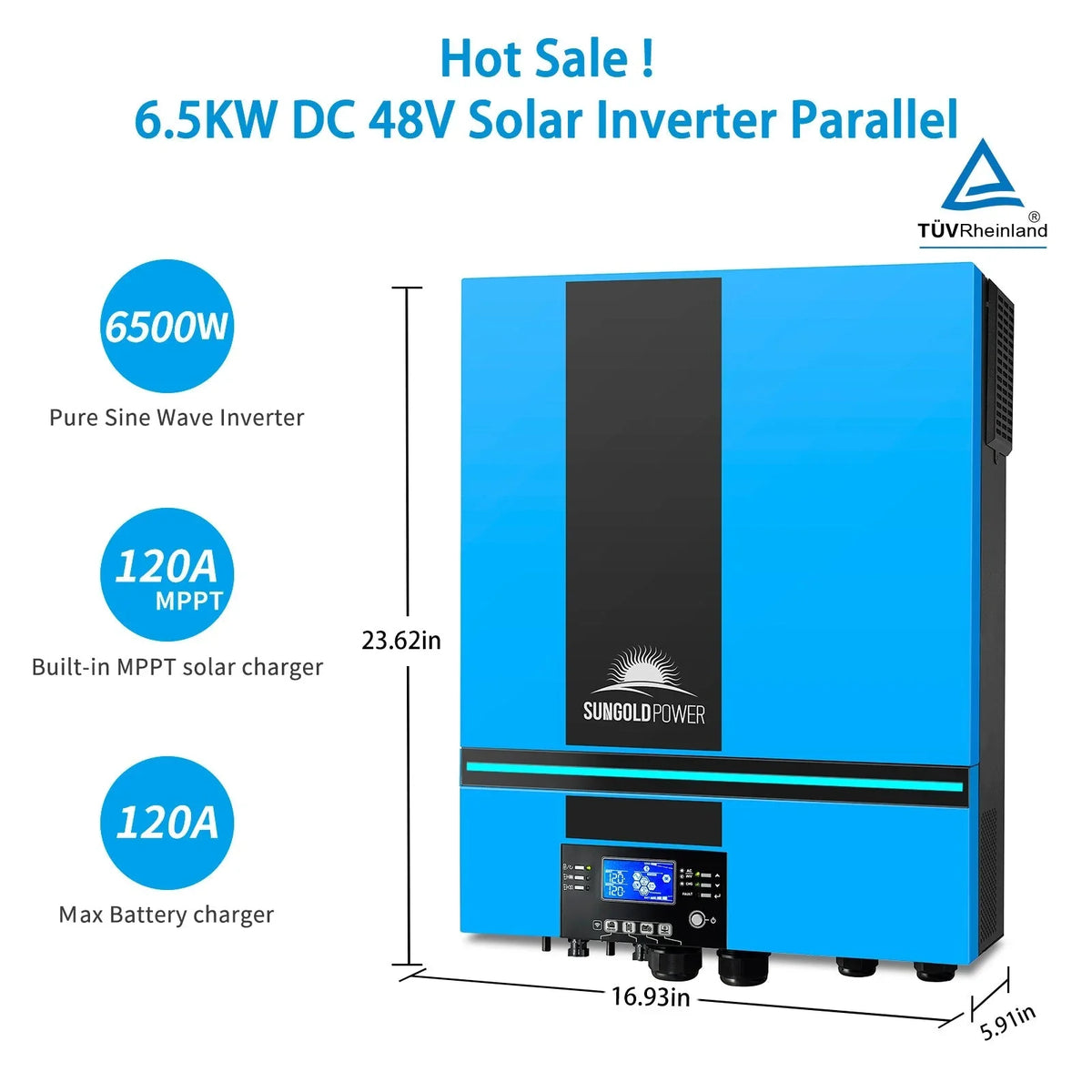

★ Solar Inverter: 6.5KW DC 48V pure sine wave AC output 120V, Built-in MPPT solar charger max 120A and utility battery charger max 120A, Max PV input 390V (VOC), Dual PV input. UL 1741 Standard Listed by TUV / CSA / FCC

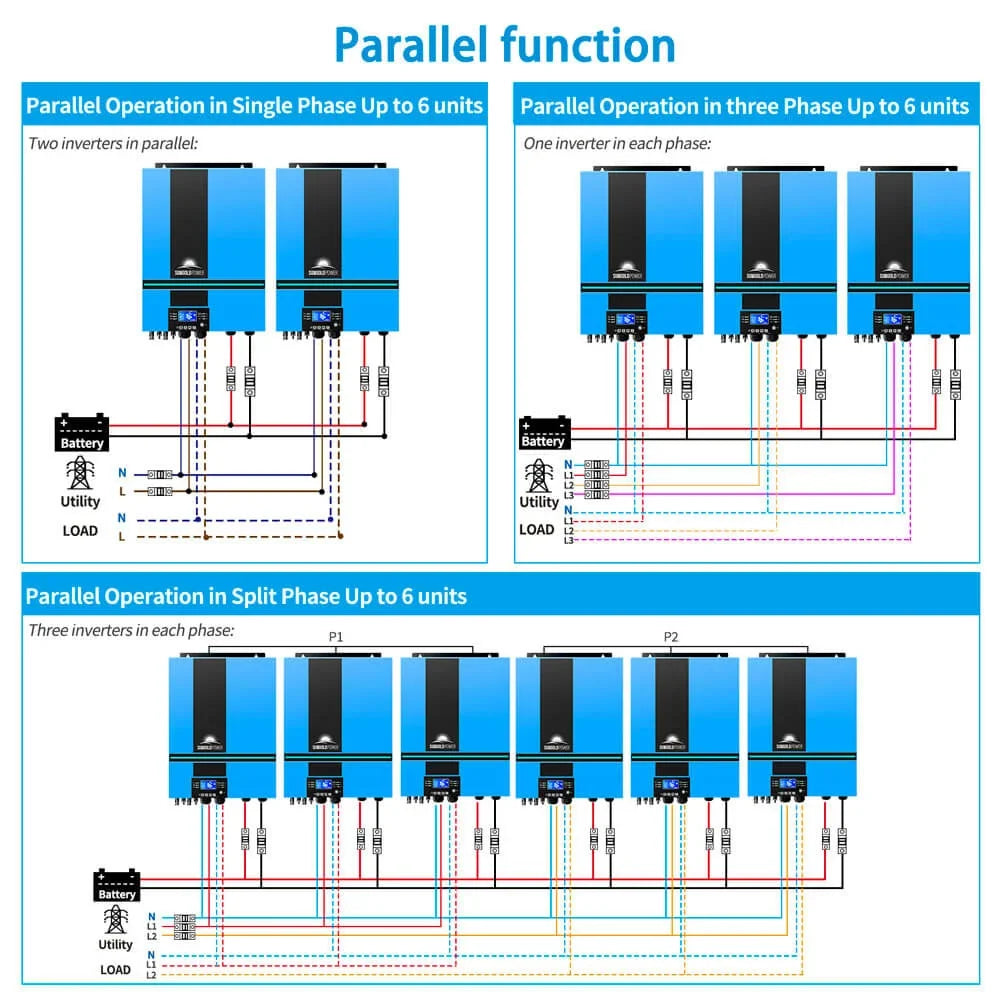

★ Parallel Kit: parallel support up to 6 units, 120V single phase (1 unit),120V/240V Split Phase capable (2 unit parallel),208V 3-Phase Support (3 unit parallel)
★ WIFI Model : Built-in WIFI transmitter, Enable inverter data to be transmitted via WIFI to user's iPhone or android smartphone, app can be downloaded from apple or android store
★ Batteryless support: the inverter can power the loads from PV array / ac grid without battery connected

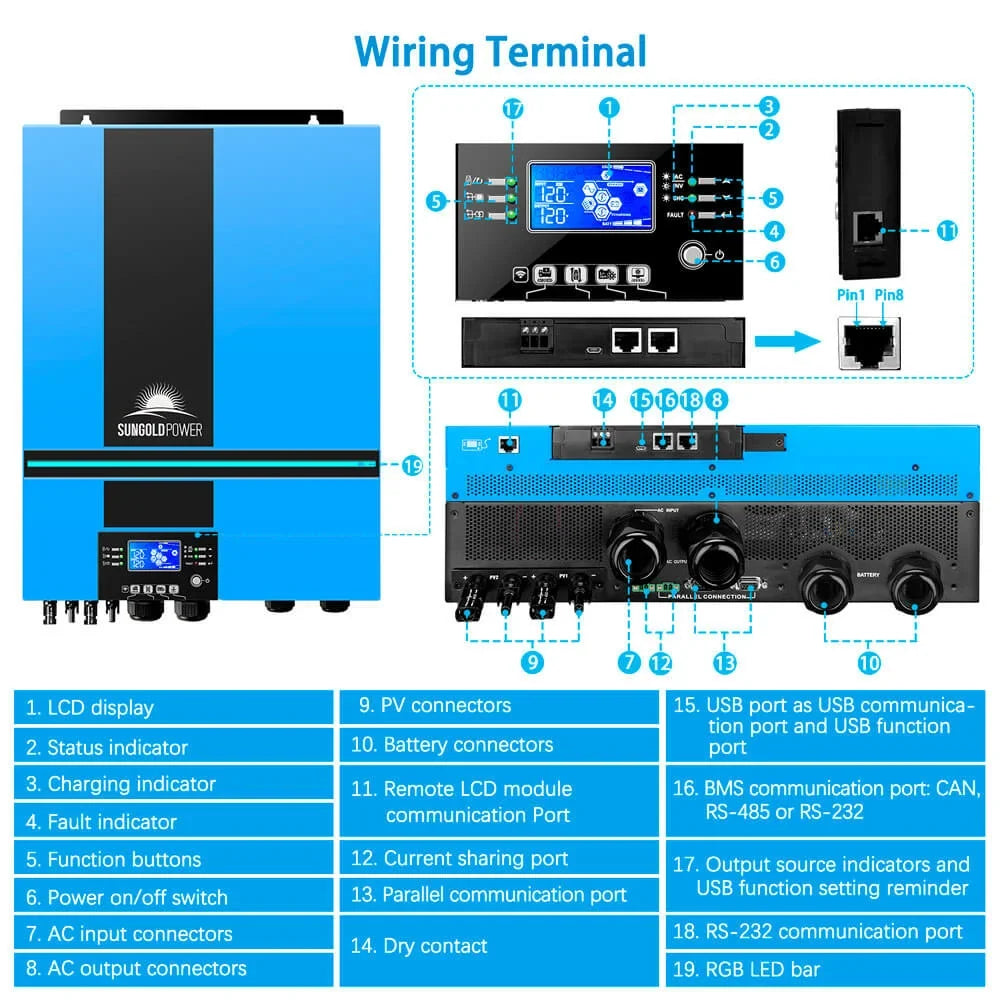

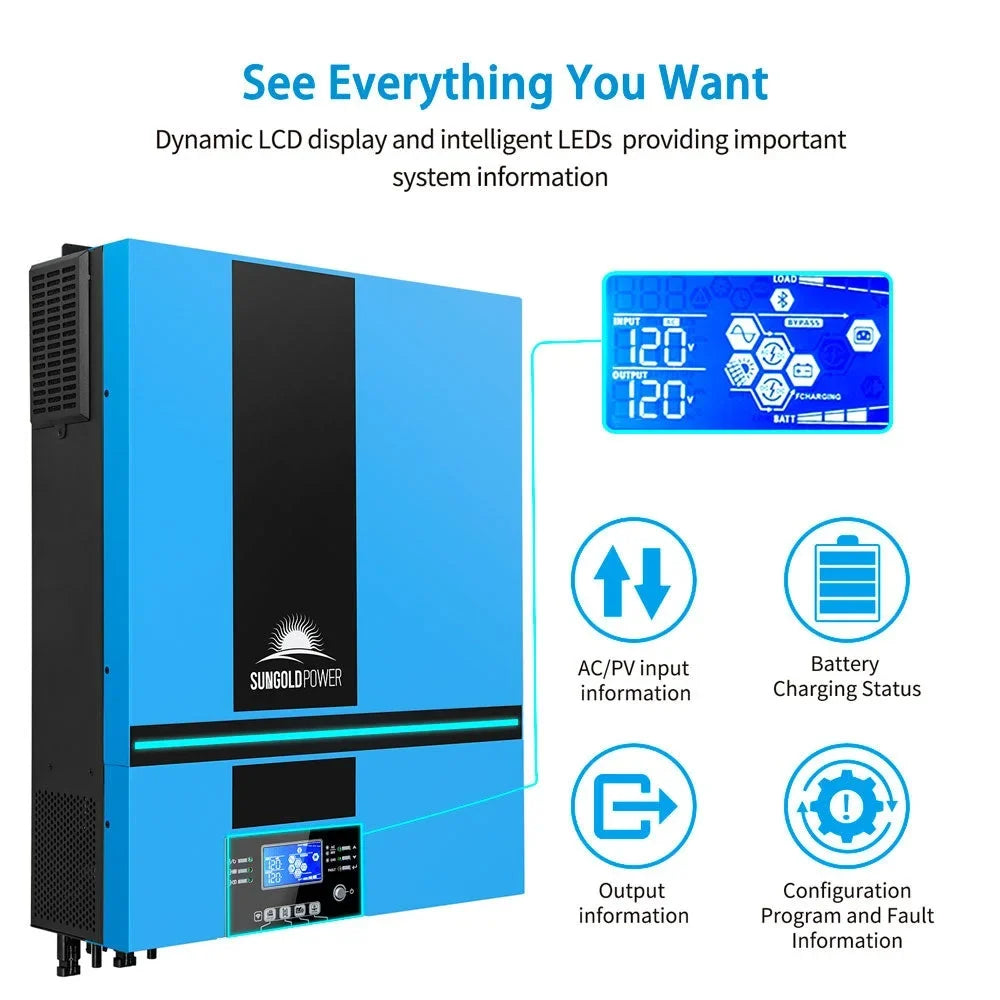

★ LCD operation: Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
Features
6500W Pure Sine Wave 120V output
Parallel up to 6 units (built-in parallel kits)
120V/240V Split Phase capable (2 unit parallel)
208V 3-Phase Support (3 unit parallel)
Built-in Wi-Fi for mobile monitoring
Work with 48V Lead-acid/Lithium/User and NO Battery
Pylontech/Weco/Soltaro BMS Support
Built-in genset starter dry contact
FREE monitoring software
Specification
What Our Experts Think
High Power Output: Combines 13,000W (2 units in parallel) to handle large-scale energy needs efficiently.
Split-Phase Functionality: Provides 120V/240V output, ideal for diverse residential and commercial applications.
Solar Optimized: Equipped with advanced MPPT technology for maximum solar charging efficiency.
Integrated WiFi Monitoring: Enables real-time performance tracking and system management via a user-friendly app.

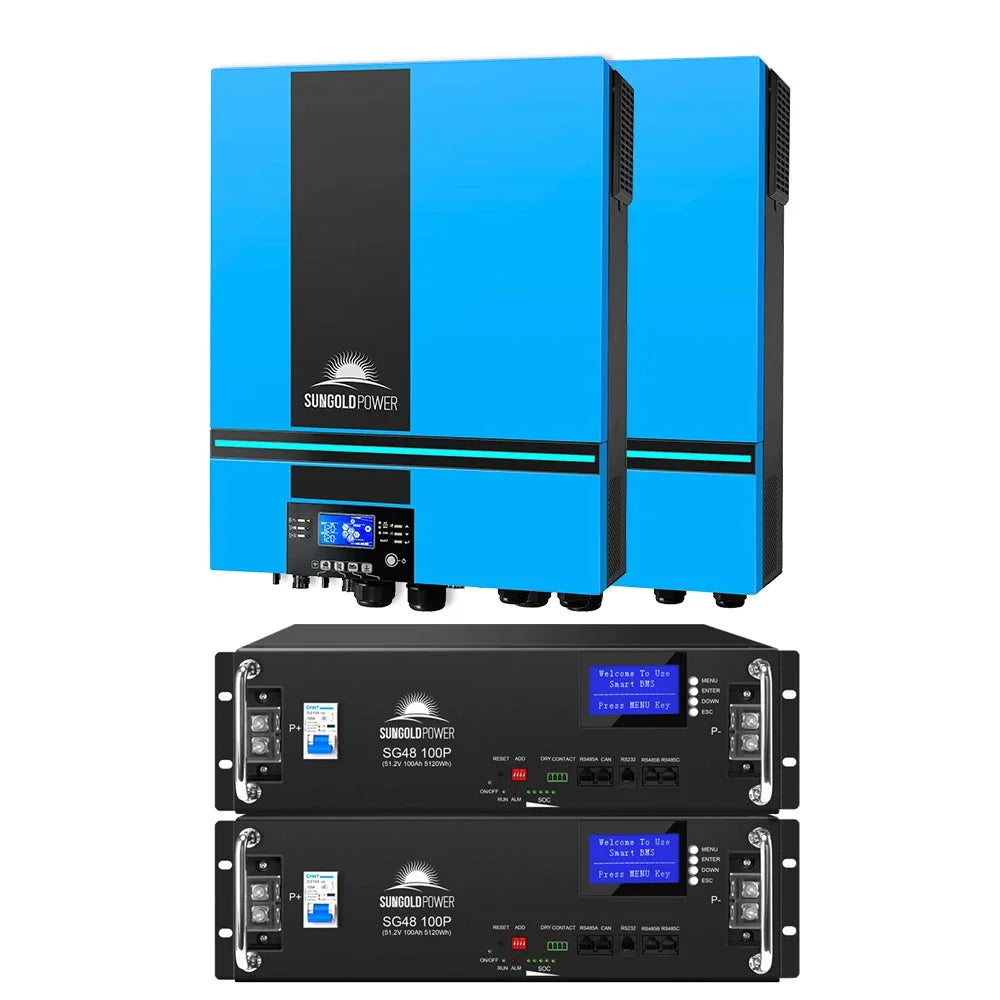

48V System Support: Perfect for robust energy storage and seamless solar integration.
Scalable Design: Parallel connection allows flexibility for expanding power capacity
Q&A

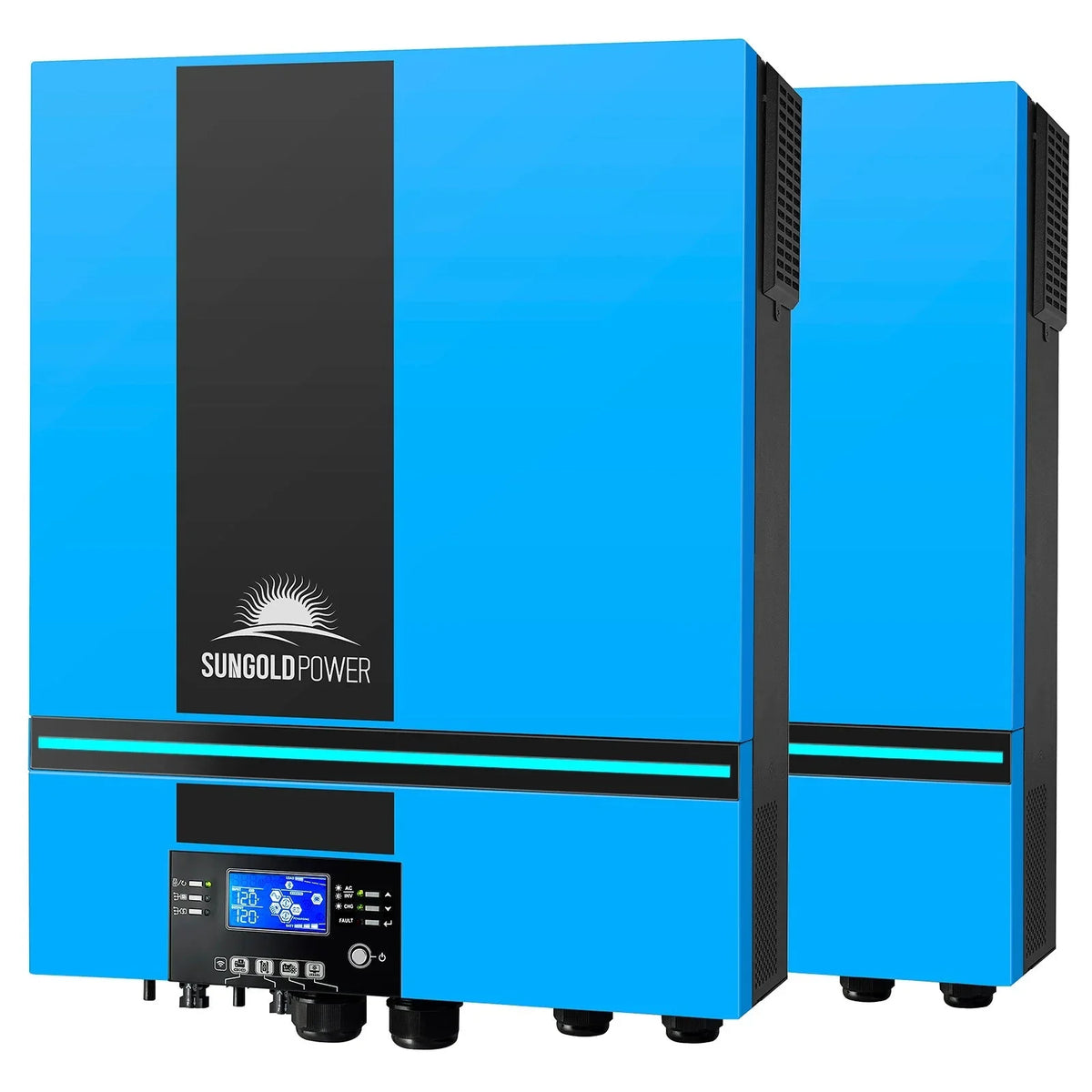

Q: What is the 13000W 48V Solar Charge Inverter Split Phase + WiFi Monitor (UL1741)? A: A dual-unit 13,000W split-phase solar inverter system (120V/240V) designed for 48V solar setups, featuring WiFi monitoring and UL1741 certification for safety and reliability.
Q: What are its key features? A:
Total 13,000W output (2 x units in parallel)
Split-phase 120V/240V for versatile power needs
Advanced MPPT for efficient solar energy conversion
Integrated WiFi monitoring for real-time system tracking
UL1741 certified for compliance with safety standards
Q: What applications is it ideal for? A: Perfect for residential solar systems, off-grid installations, and backup power for high-demand appliances.
Q: Can it handle heavy-duty appliances? A: Yes, the 13KW capacity and split-phase output are suitable for large loads like HVAC systems, water heaters, and industrial equipment.
Q: Is the system user-friendly? A: Absolutely, the WiFi monitor allows for easy remote monitoring of performance and system status
Maintenance Tips
Cooling System: Regularly clean fans and vents on both units to prevent overheating.
Parallel Connections: Inspect and tighten parallel wiring to ensure balanced operation.
Battery Maintenance: Check battery voltage, connections, and state of charge periodically.
WiFi Monitor: Use the monitoring system to track performance and identify issues early.
Environment: Install in a dry, dust-free, and well-ventilated area.
Firmware Updates: Update both units simultaneously to maintain compatibility and efficiency.
Power Down Safely: Disconnect solar panels and batteries before performing any maintenance.
