Eco-Worthy 1170W 24V (6x Bifacial 195W) Complete MPPT Off Grid Solar Kit

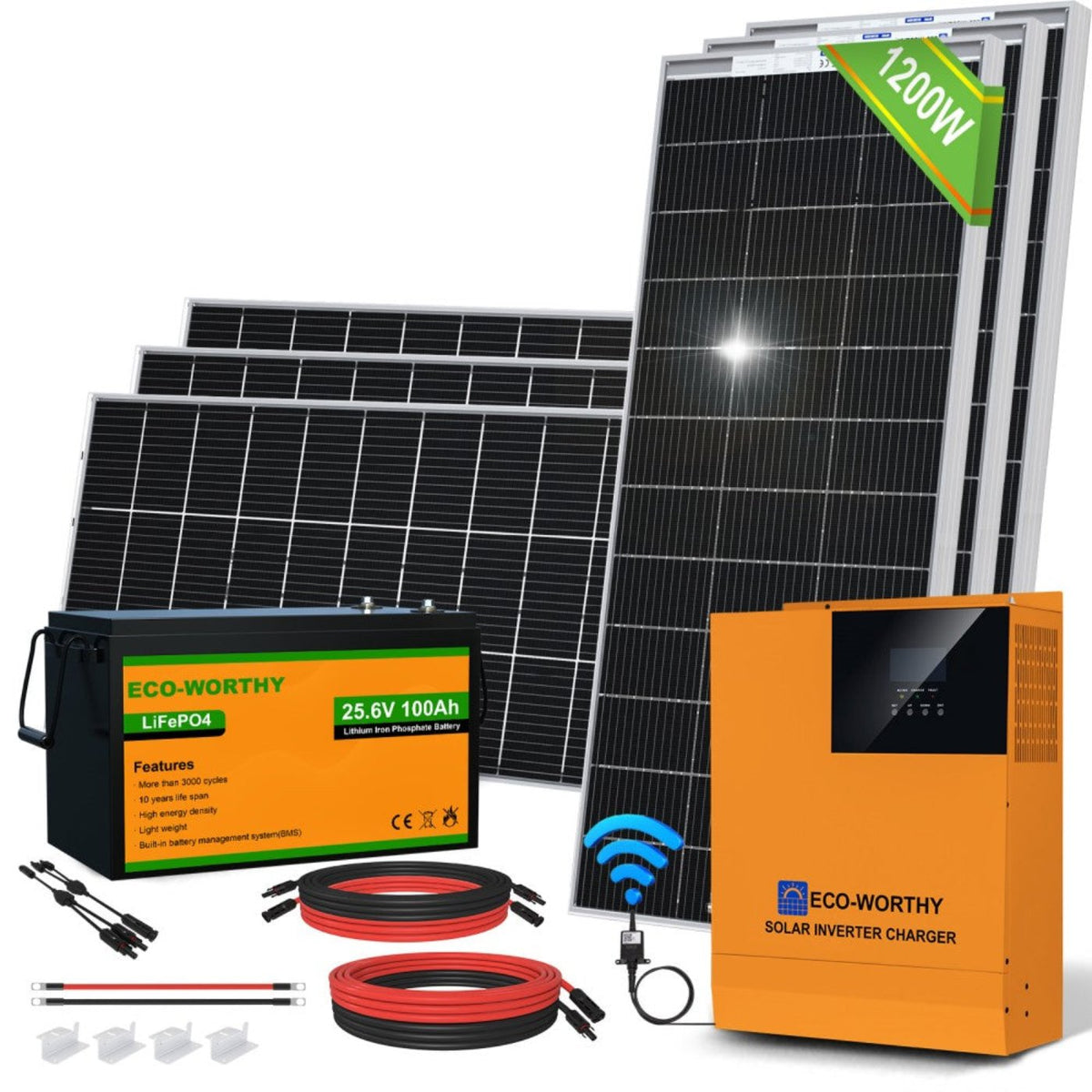

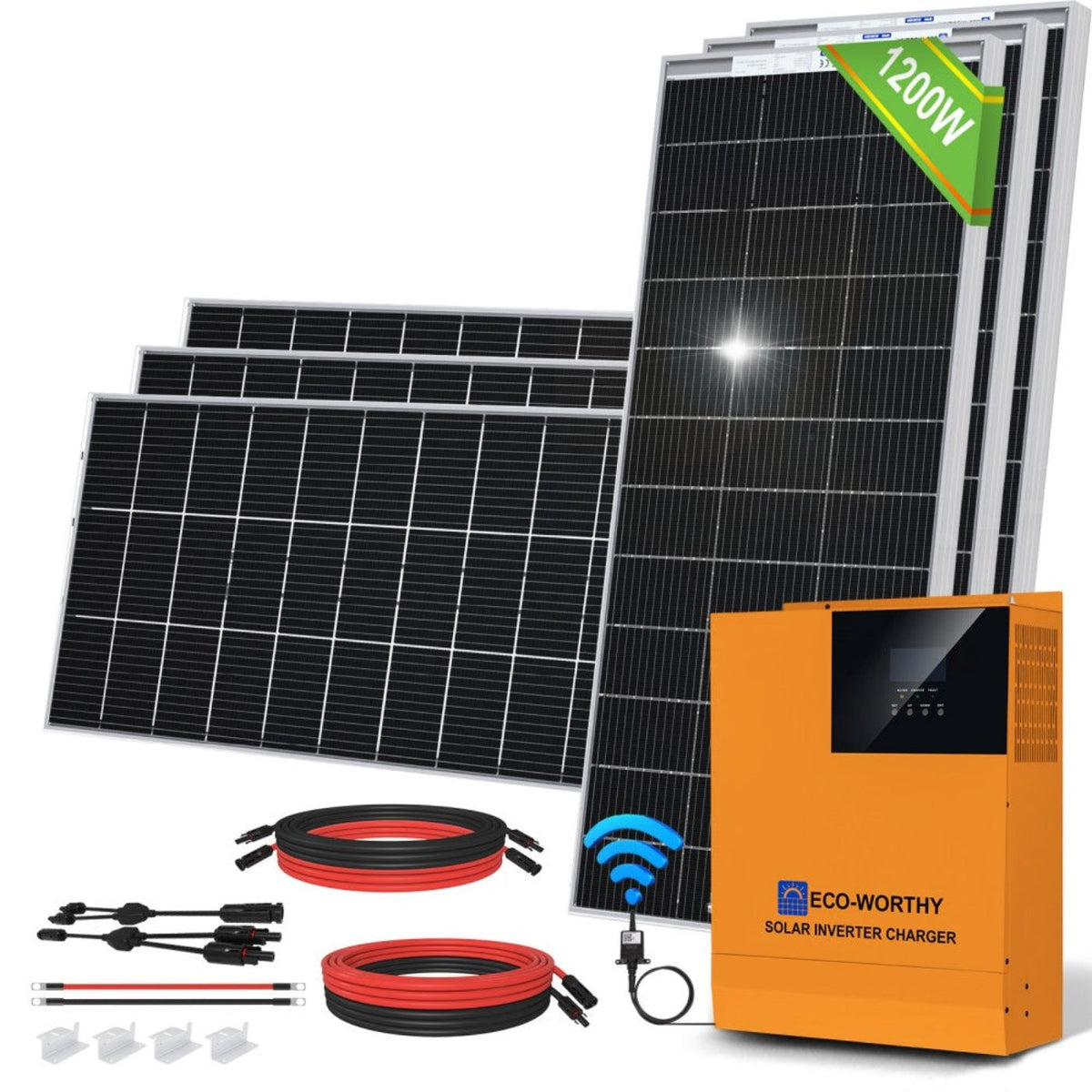

Package Includes
6x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(3000W 24V Inverter+60A MPPT Controller)
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
6x Z Mounting Bracket
2x Y MC4 Connector
Battery Options-
2.4kWh Lithium Battery (optional)
with
1x 100Ah 24V LiFePO4 Lithium Battery
Specifications
| Rated Power: 195W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A |
Maximum current: 9.85A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |

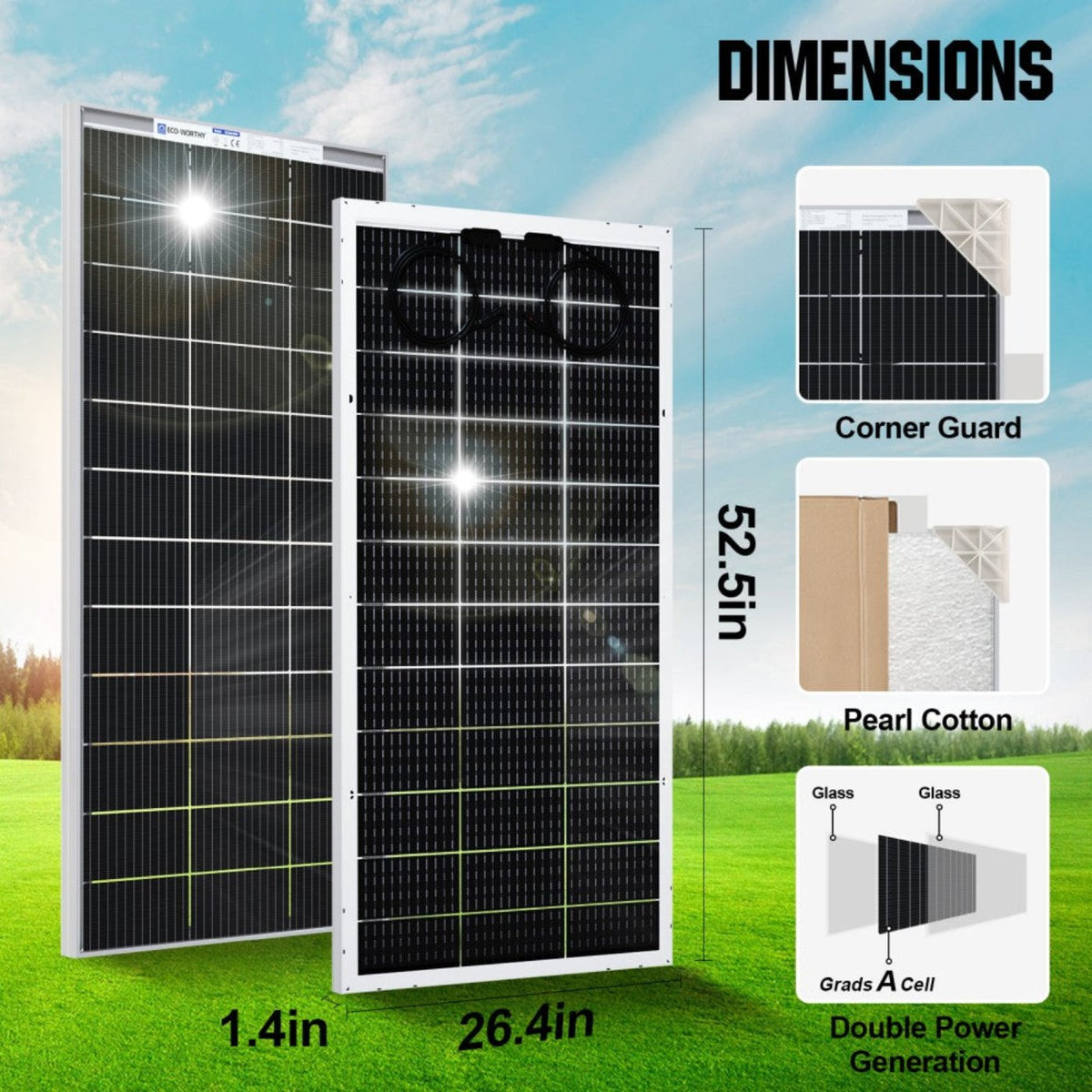

| Size: 52.6x26.38x1.38in (1335*670*35mm) |
|

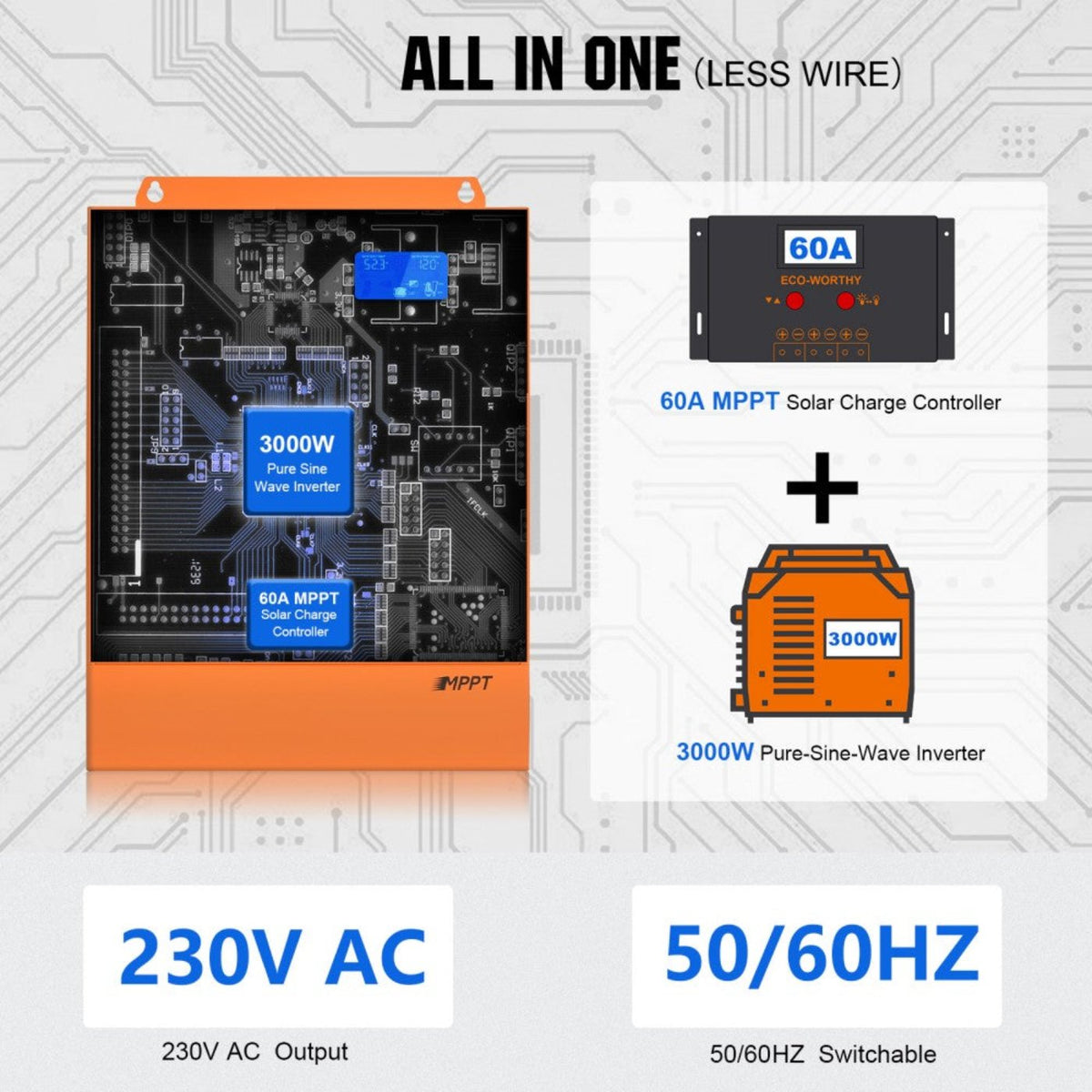

All-in-one Inverter(3000W 24V Inverter+60A controller)
| Solar Charging Mode |
|
| Solar Charge Mode: MPPT |
PV Charging Rated current: 60A |
| Max Input Power: 1400W |
Rated Battery Voltage: 24V |
| Invert Mode |
|
| Output Waveform: Pure Sine Wave |
Rated Output Power: 3000W |
| Rated Battery Input Voltage: 24V |
Rated Output: 110VAC 50Hz/60Hz |
| Peak Power: 6000W |
|
| AC/Grid Charging Mode |
|
| Rated Input: 110VAC 50Hz/60Hz(auto detect) |
|

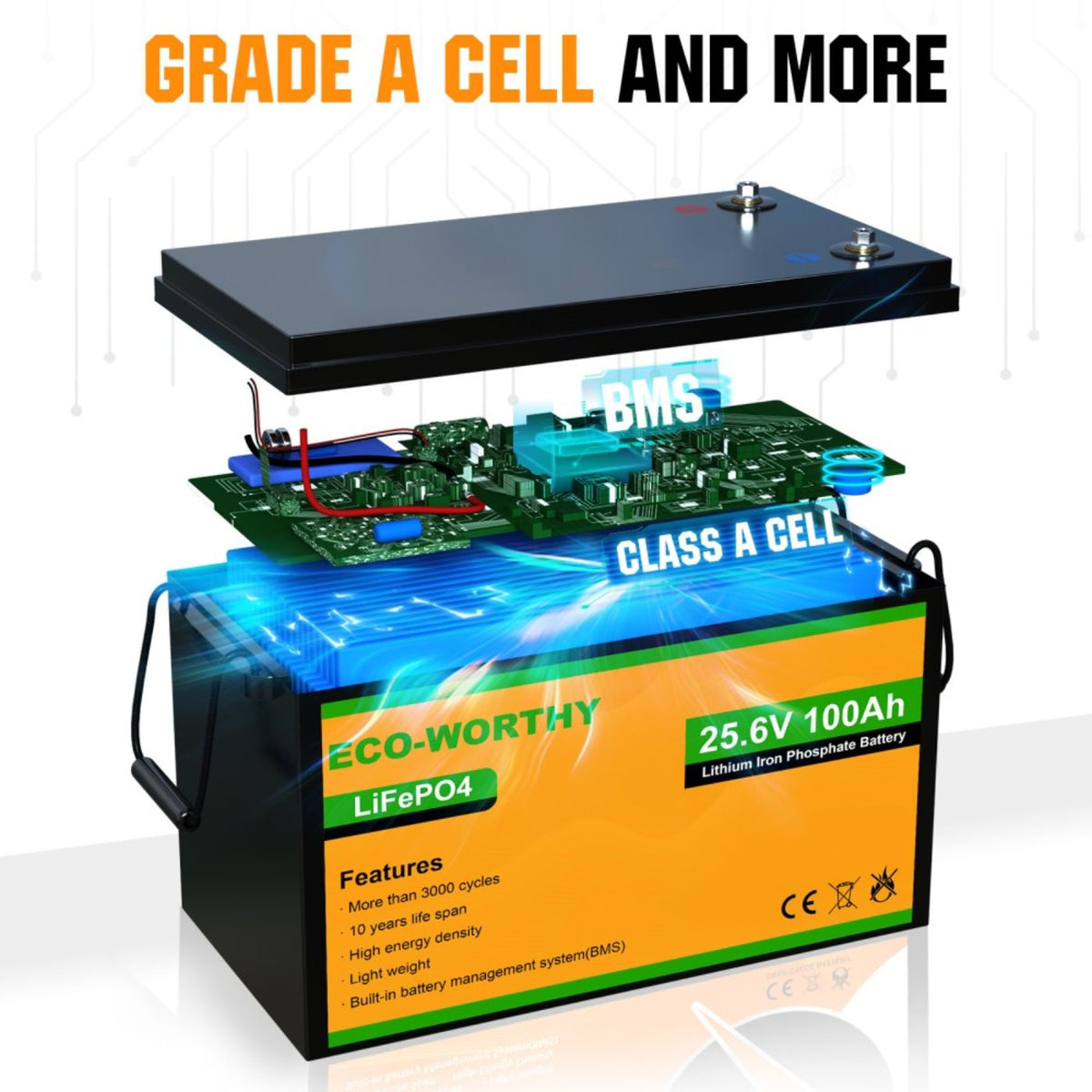

100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah |
Battery Power: 2560Wh |
| Battery Voltage: 25.6V |
Maximum Charging Current: 100A |
| Maximum Discharging Current: 100A |
Max Charge Voltage: 29.2V |
| Operating Temperature: -4°F to 140°F |
BMS: Integrated battery management system |
| Terminal: M8 screw |
Size: 15.1*7.6*10inch |
| Weight: 44.75lbs |
|
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets |
8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. |
Easy installation for 2 solar panels connected in parallel. |
What Our Experts Think
-

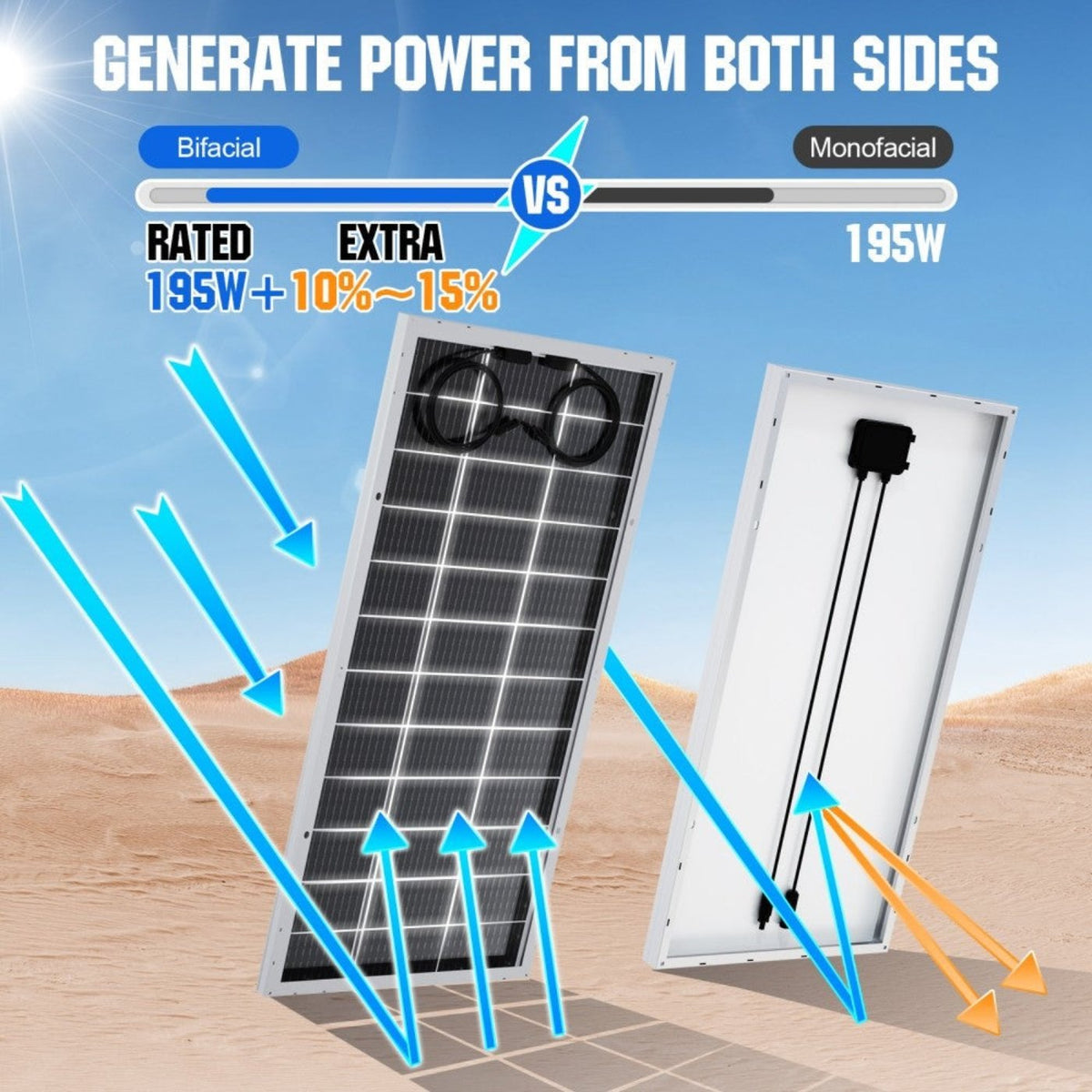

High-Efficiency Solar Panels: Includes 6 bifacial 195W panels, utilizing sunlight from both sides for up to 25% more energy production.
-
Powerful System: Delivers 1170W of output, ideal for off-grid homes, RVs, cabins, or backup power systems.
-
Advanced MPPT Technology: Features an MPPT charge controller, optimizing energy conversion and battery charging efficiency.
-
Complete Kit: Comes with solar panels, cables, mounting brackets, and controller for straightforward installation.
-
Durable and Reliable: Panels are weather-resistant and designed for long-term performance in harsh conditions.
Q&A
Q: What is the Eco-Worthy 1170W 24V Complete MPPT Off-Grid Solar Kit?
A: The Eco-Worthy 1170W 24V solar kit includes six 195W bifacial solar panels and an MPPT charge controller, offering a high-efficiency, off-grid power solution for various applications.
Q: What are its key features?
-
Power Output: 1170W total (6 x 195W bifacial panels).
-
Panels: Bifacial design captures sunlight from both sides for enhanced efficiency.
-
Controller: 60A MPPT charge controller for optimized power management.
-
Durability: Weather-resistant panels and components for long-lasting use.
-
Applications: Perfect for homes, RVs, cabins, boats, and remote areas.
Q: Who is this solar kit ideal for?
A: It’s ideal for individuals or businesses seeking a powerful, eco-friendly off-grid energy solution with maximum efficiency.
Q: Why choose the Eco-Worthy 1170W Off-Grid Kit?
A: Its bifacial panels, reliable MPPT technology, and high wattage provide consistent and efficient energy, making it a practical choice for sustainable living
Maintenance Tips
-
Solar Panel Cleaning: Clean the bifacial panels regularly using a soft cloth and water to remove dust and debris for optimal sunlight absorption.
-
Panel Inspection: Check for cracks, scratches, or discoloration on the panels and ensure both sides are free from obstructions.
-
Mounting Stability: Inspect the mounting brackets for tightness and stability. Secure any loose hardware to maintain proper alignment.
-
Charge Controller Check: Monitor the MPPT charge controller to ensure it’s functioning correctly and track energy input/output.
-
Battery Maintenance: Check battery connections, fluid levels (if applicable), and voltage regularly. Avoid over-discharging or overcharging the battery bank.
-
Wiring and Connections: Inspect all cables, connectors, and terminals for wear, corrosion, or looseness. Replace or tighten as needed.
-
Inverter Monitoring: Ensure the inverter is operating within safe temperature ranges and verify it outputs consistent power.
-
Performance Tracking: Periodically review system performance data to detect inefficiencies or potential issues early.
-
Weatherproofing: Verify that all system components, including junction boxes and wiring, are sealed and protected against weather exposure.
-
Shading Issues: Ensure panels are free from shading throughout the day to maximize energy generation.
