TEIN Type HG Gravel Spec Coilovers - Acura RSX Dc5

The Type HG (Dirtra Master) Coilover from TEIN Japan is designed specifically for rally and/or dirt trail racing.

This coilover was designed with years of actual race history behind it from TEIN. To meet the demand of different road surfaces, the coilvoer has individual compression / rebound damping force adjustment and ride height adjustment to meet your needs when racing off-road. The coilovers utilize a twin-tube design and is constructed in steel to make sure it stays durable in all sorts of conditions.

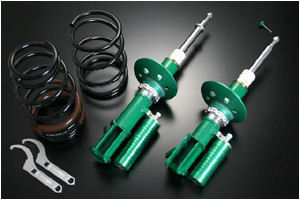

As you can see in the pictures, there is an external resevoir for increased oil capacity and increased heat dissipation. This is effective for long periods of time when running the vehicle hard.

Additional Features:
• Steel Construction for added durability
• Twin Tube internal construction
• Ride Height adjustable via adjustable spring seats
• 16 × 16 way adjustable dampers, compression and rebound separately adjustable
• External reservoirs for additional oil capacity and increased stroke
• 3 stage powder coat
• Some applications utilize large diameter spring seats which allows both OEM and aftermarket springs to be used
• 1-year Manufacturers Defect Warranty
• Available for Overhaul

Contents of Damper Kit:

• Adjustable Shock Absorber × 4
• Hook Spanner × 2
• Main Spring ×
• Instruction manual
• Upper Spring Seat Included in some applications
• Lower Spring Seat × 4
• Seat Lock × 4
• Bump Rubber × 4
