AirREX Complete Digital Air Suspension Kit with Struts - Mazda 3 03+
-
Product Description

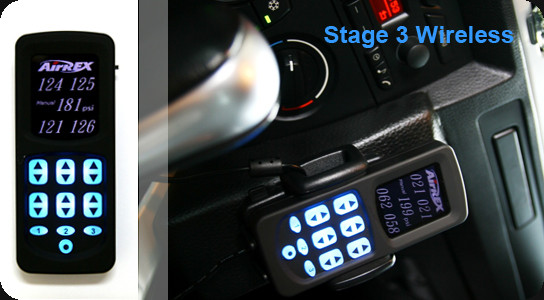

- Wireless Digital Remote Operation
- The AirREX control systems offer a wireless 2.4 GHz remote, rechargeable battery and 3 programmable ride height presets. Vehicle raise and lower operation can be controlled individually or together for easier adjustment. Tank and air spring pressures are displayed on a backlit TFT LCD screen for simple operation even in complete darkness. * 12V car charger and a spare USB wired remote is included. (Wireless range ~1000 meters)
- Fully Assembled and Leak Tested
- Save yourself up to 10 hours of installation time with the AirREX Digital Air Management System. All components are fully assembled and leak tested at the factory. Just make 2 simple electrical connections (power and ground) and 4 plumbing connections (one to each air spring) to complete installation.
- Compact and Stylish Package
- The AirREX Digital Air Suspension System compact size (30”X12”X10.5”) (LXWXH) allows easy fitment in even the smallest of vehicles. The composite wood casing is fully carpeted in gray to match most interiors and features a stylish smoked acrylic window.
- The AirREX Digital Air Suspension System compact size (30”X12”X10.5”) (LXWXH) allows easy fitment in even the smallest of vehicles. The composite wood casing is fully carpeted in gray to match most interiors and features a stylish smoked acrylic window.
- Air Compressor
- A Viair 380C 1.34 CFM 100% Duty Cycle compressor recharges the tank in less than 4 minutes and provides reliable operation.
- A Viair 380C 1.34 CFM 100% Duty Cycle compressor recharges the tank in less than 4 minutes and provides reliable operation.
- Air Tank
- A 3 gallon tank is standard and allow for operation from fully lowered to full height at least once before the system automatically recharges. * Cycle of operation depends on pressure in tank, type of air springs, and weight of car.
- A 3 gallon tank is standard and allow for operation from fully lowered to full height at least once before the system automatically recharges. * Cycle of operation depends on pressure in tank, type of air springs, and weight of car.
- Electronic Solenoids
- A compact and reliable electric solenoid manifold help ensure trouble free operation of the AirRex Digital Air management System. The solenoid assembly also includes inline mechanical “slow down” valves to allow users to dial in the raise and drop speed of the vehicle.
- Vehicle Specific Upper Mount
- Every AirREX upper mount is CNC machined from 6061 aluminum and then hard anodized. High density polyurethane bushings and/or high performance bearings completes the package to ensure exact fitment and durability. These upper mounts not only simplify installation but also improve ride quality, handling, and help provide maximum drop by replacing the bulky OEM upper mount.
- 12 Clicks Adjustable Damper
- A 12-way compression + rebound (together) adjustable damper is standard in every AirREX application. Each damper is matched to the air spring (bellow or sleeve) for the vehicle application and the user can further adjust for performance or comfort by the simple turn of a knob.
- Choose from:
- Double Convoluted Bellow
- High durability 2-ply double convoluted air springs help provide both a comfortable ride at driving height and maximum drop when aired out. The size of the bellow is carefully chosen by AirREX engineers for each application to ensure correct spring rate and proper clearance for the vehicle.
- Rolling Sleeve
- High durability rolling sleeves help provide both a comfortable ride at driving height and maximum drop when aired out. Rolling sleeves are much smaller in diameter but provide as much travel as large bellows and are used on application where air spring clearance is minimal. The size and type of rolling sleeve are carefully chosen by AirREX engineers for each application to ensure correct spring rate and proper clearance for the vehicle.
- Twist Lock Compression Fitting
- Compression fittings are used to ensure a reliable leak free seal when used with 6mm or _ inch DOT nylon air tubing.
- Fully Threaded Damper
- Each AirREX damper is fully threaded to maximize adjustability similar to that of a coil over. Users can easily adjust for maximum drop or for maximum comfort at driving height by simply loosening the lower lock collar and turning the damper + air spring assembly up or down.
- Vehicle Specific Lower Mount
- Every AirREX application includes a vehicle specific lower bracket which is manufacture to exact OEM specification. Every tab or bracket for the hub, spindle, sway bar, brake lines, abs sensor, etc. is present to ensure proper fitment like that of the factory suspension. Some applications will include a high density polyurethane lower mount bushing.
- Air strut front and rear (for cars that have 4 strut or coilover configurations)
- Air strut front and rear air bags (for cars that have strut or coilover front and shock and spring rears.)
Front Mount : Included
Rear Mount : OEM - Wireless Digital Remote Operation
-
Product Reviews
-
Manufacturer Insight
AirREX was established in the USA late 2010. Together we are a group of designers, SAE mechanical engineers, ASE certified technicians and most importantly automotive enthusiasts. Combined we have decades of experience in automotive suspension design, engineering, manufacturing, and installation of coil spring, hydraulic, and pneumatic suspension systems.
AirREX USA was formed because we saw the absence of a performance oriented, easy to install, and affordable air suspension system for Japanese and European vehicles in the US market. We are dedicated to provide the highest quality product with the utmost customer service and support.
AirREX Global have a network of distributors in Japan, Germany, USA etc. Headquartered in Taiwan AirREX suspension systems are engineered from the ground up for each specific application to ensure trouble free installation and operation. R&D is done using Catia V5 modeling software and testing is done independently by ARTC to ensure ISO9001 & TSI16949 strict quality control standards.
AirREX Global is a division of Pin Hsiu Rubber Company Ltd. Pin Hsiu Rubber Co., Ltd. was established in 1984. With years of professional experience, President Masa Lin has lead this company to succeed in the manufacture of rubber injection components for the automobile and motorcycle industries.
Pin Hsiu manufacture various products, such as C.V. Joint Boots, Steering Rack Boots, Air Springs, Bushings, O-Rings, Oil Seals, Packings, etc. Based on our "committed to excellence", we have always pursued consistent operating procedure. All aspects of product development including raw material testing, development & designing of moulds, rubber injection, quality control, packaging, shipping are executed according to high standards.
-
